Automatic Spacer Machines
For producing mesh spacers. Operates at a speed of 30m per minute.

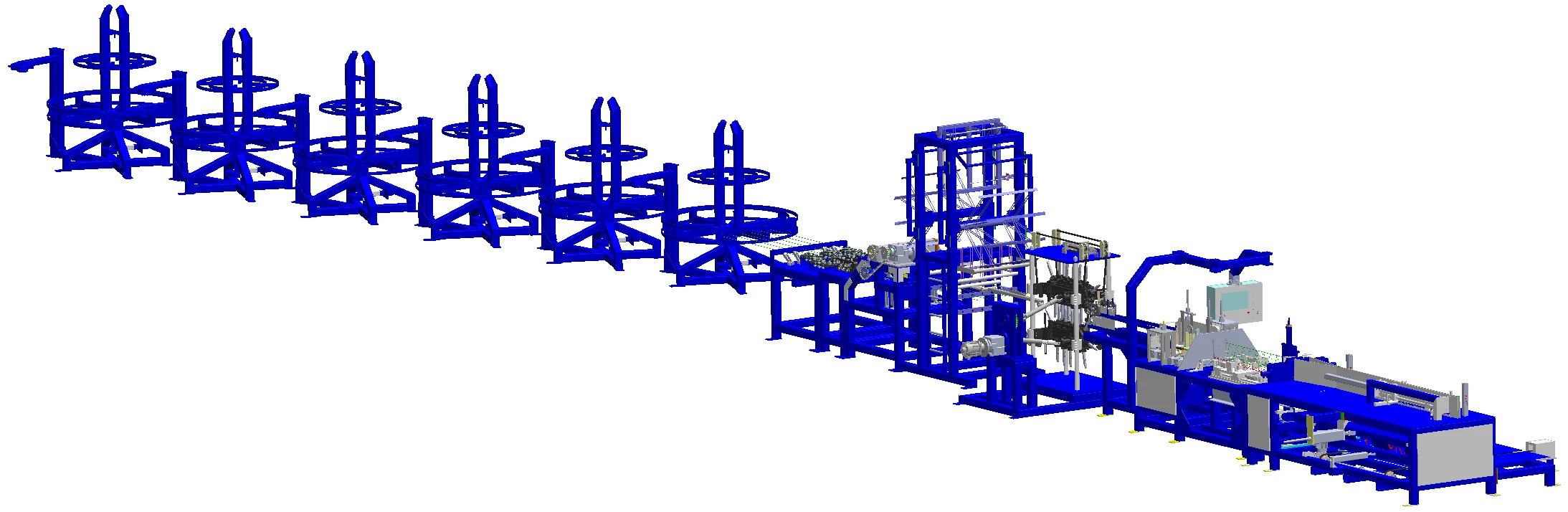

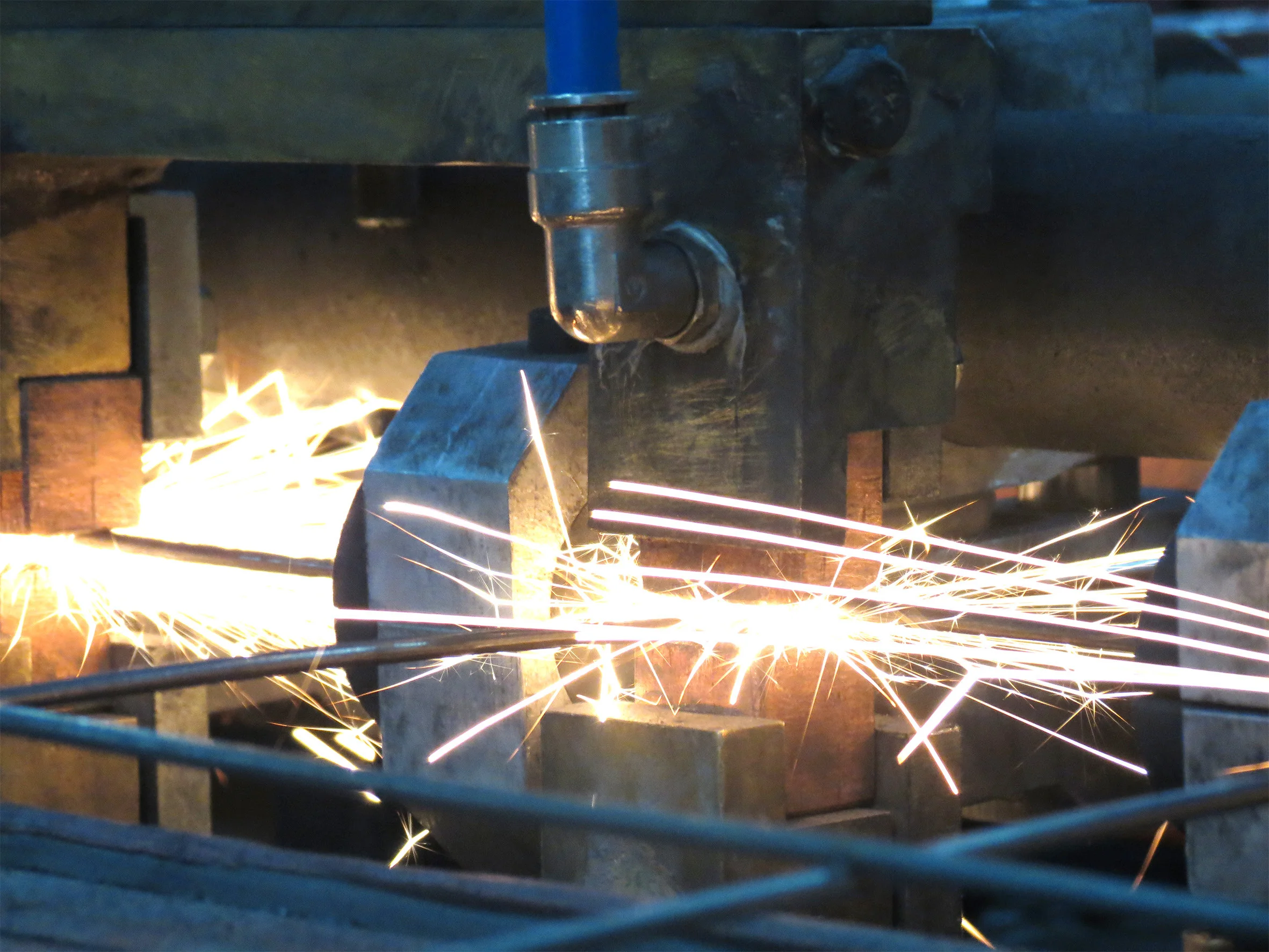

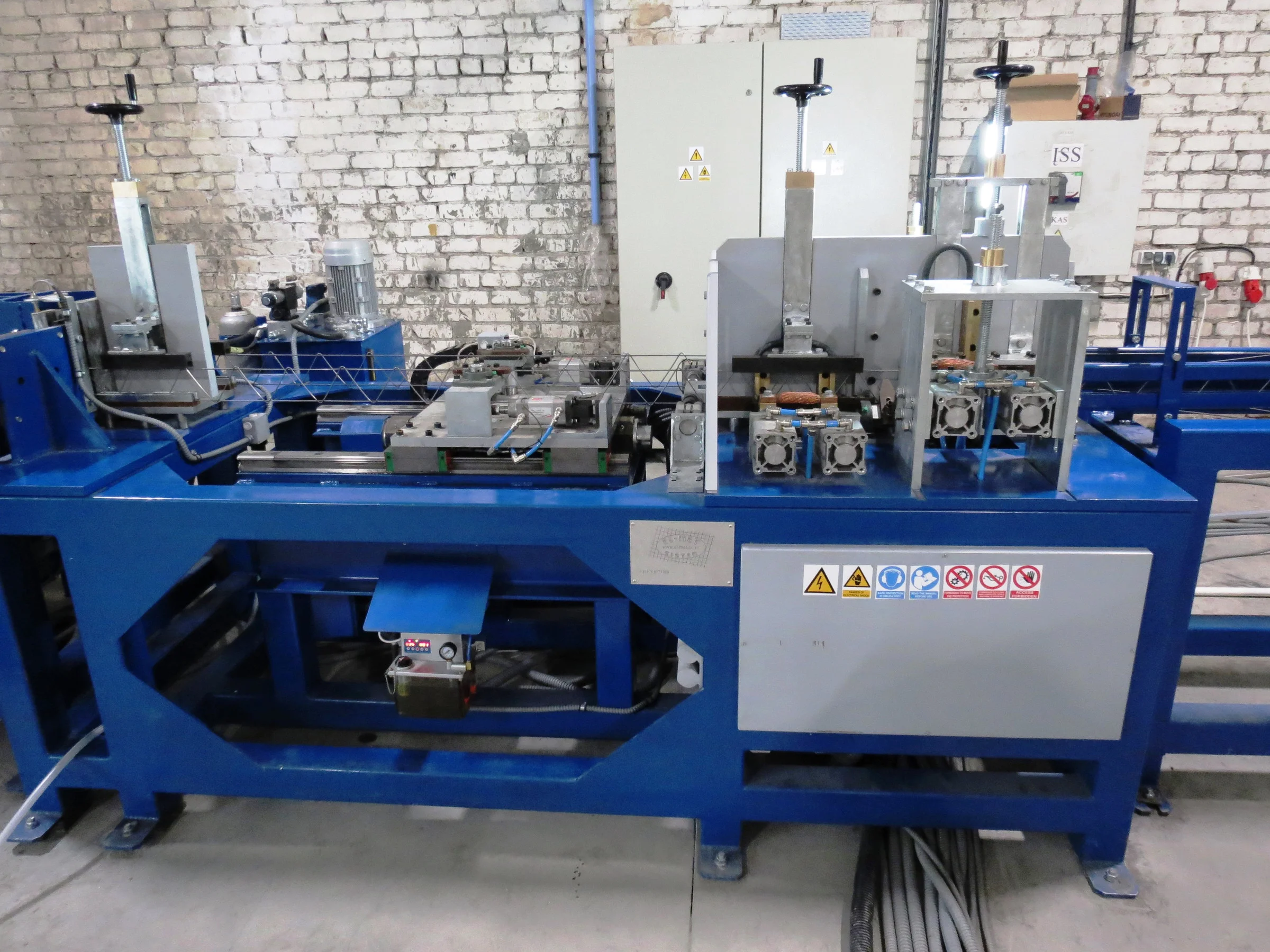

Automatic spacer machine PB-70/250-1000NC-2C is designed for fast, precise, and reliable production of reinforcement spacers. Depending on customers request, machine can have single or double welding stroke, and spacer height can be customized. Machines welding speed is 30m/min.
Our key features are carefully engineered to deliver exceptional performance, long-term reliability, and maximum efficiency. Every aspect of the machine is designed with precision, ensuring consistent results even in demanding production environments.

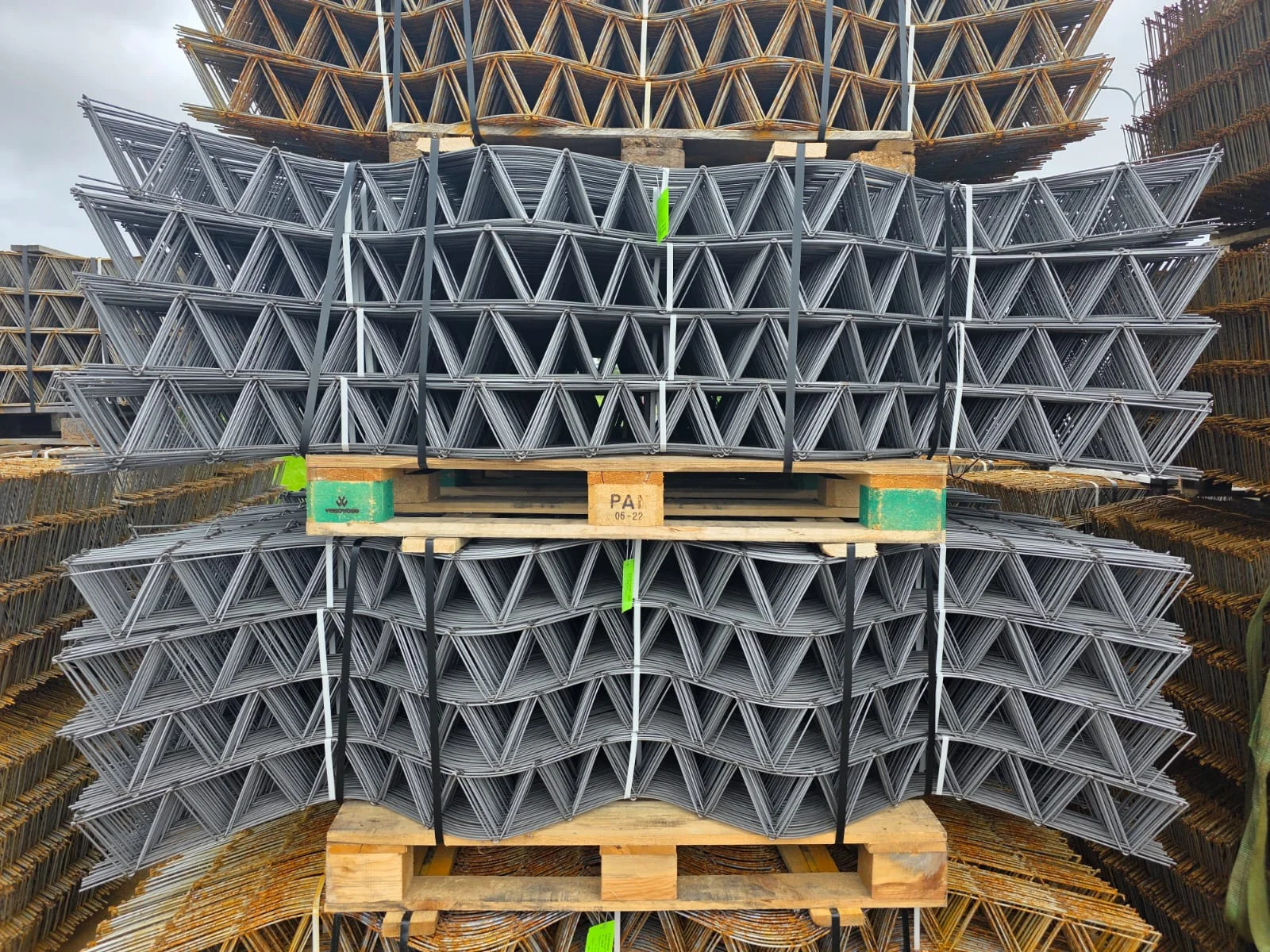

With a production speed of 120 cross wires per minute, the line delivers fast, consistent, and high-volume manufacturing of ladder reinforcement elements.

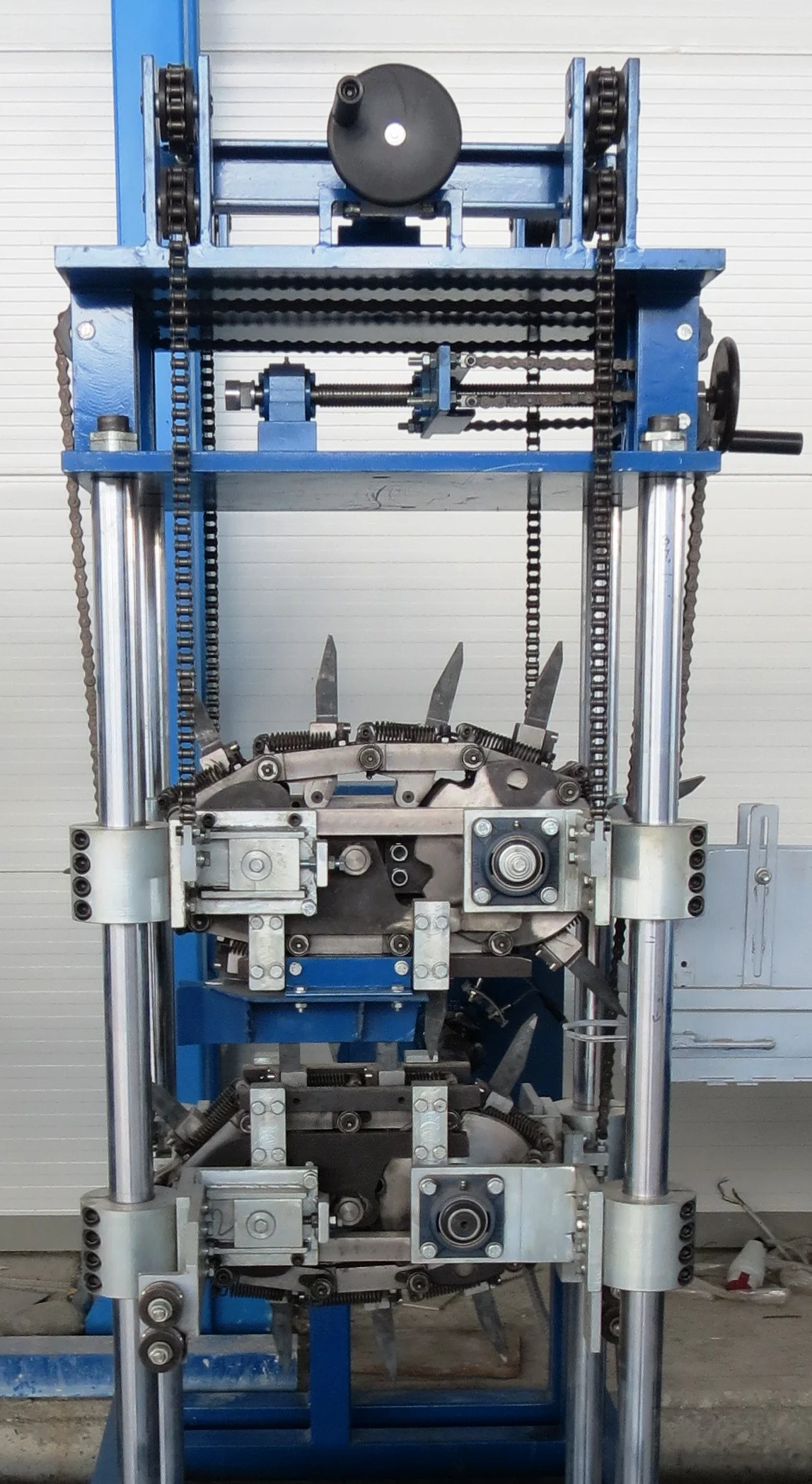

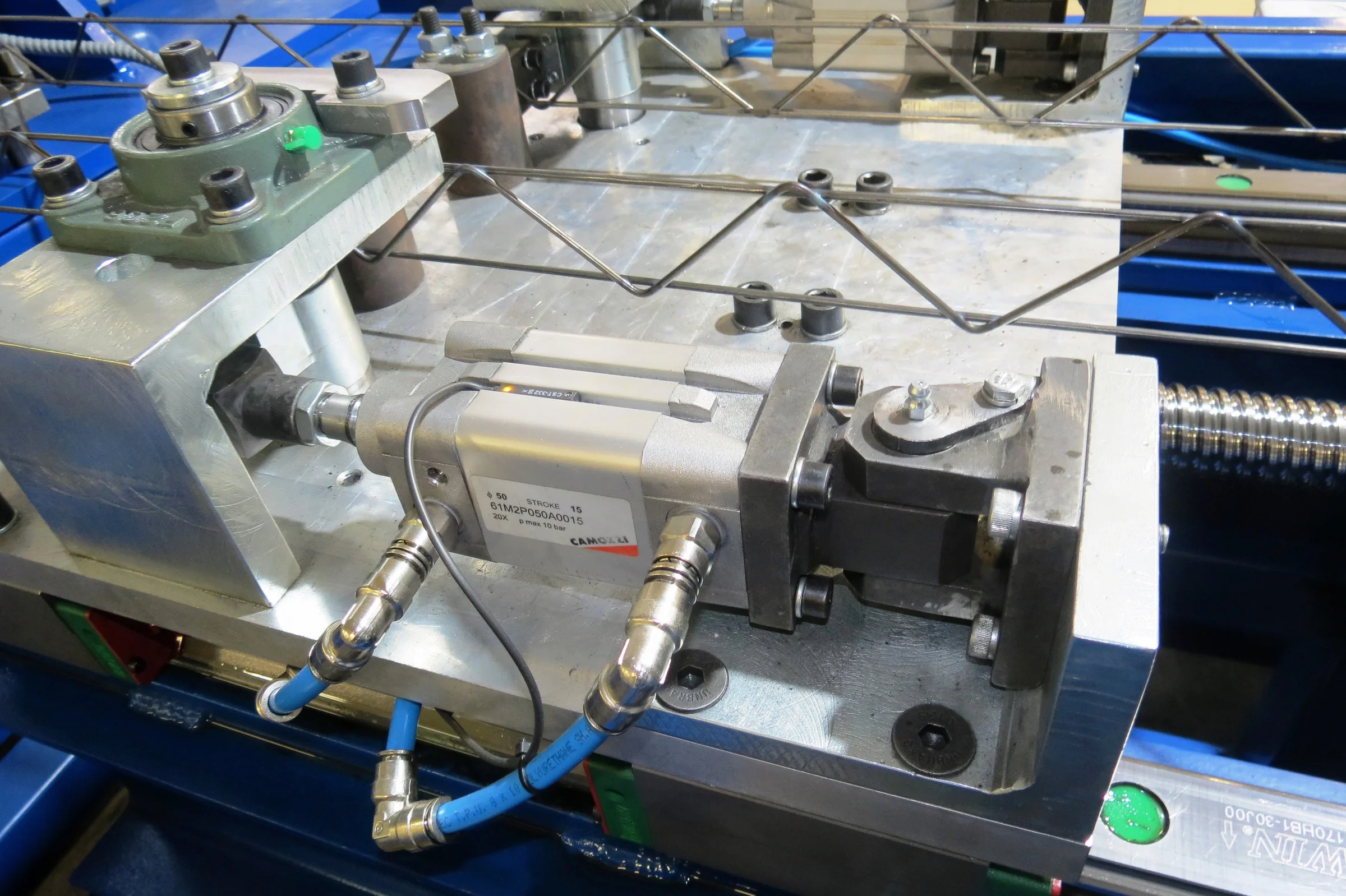

Advanced control and precise bending ensure uniform spacer geometry, reliable dimensions, and repeatable quality across every produced element.
CUSTOMISABLE

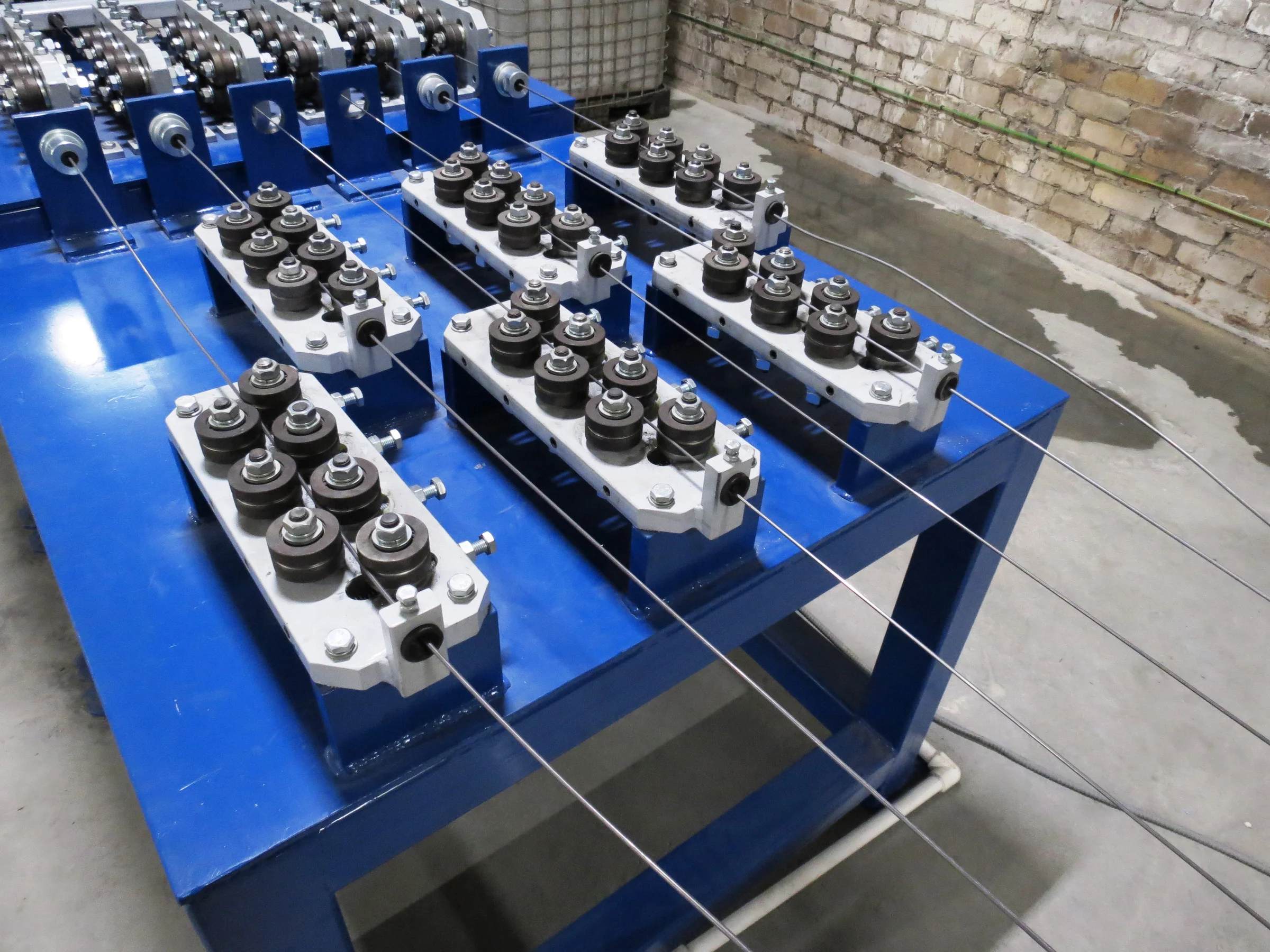

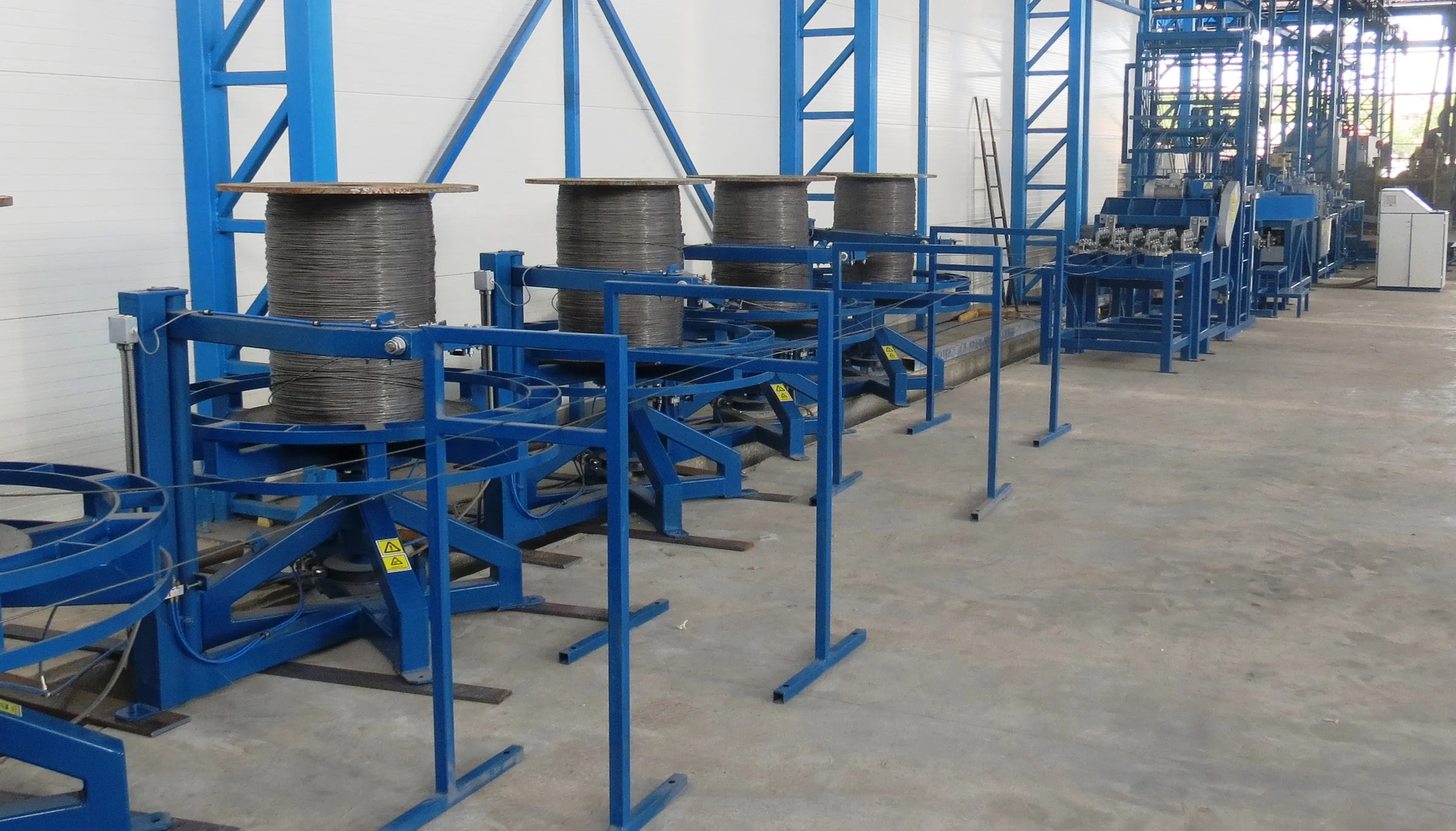

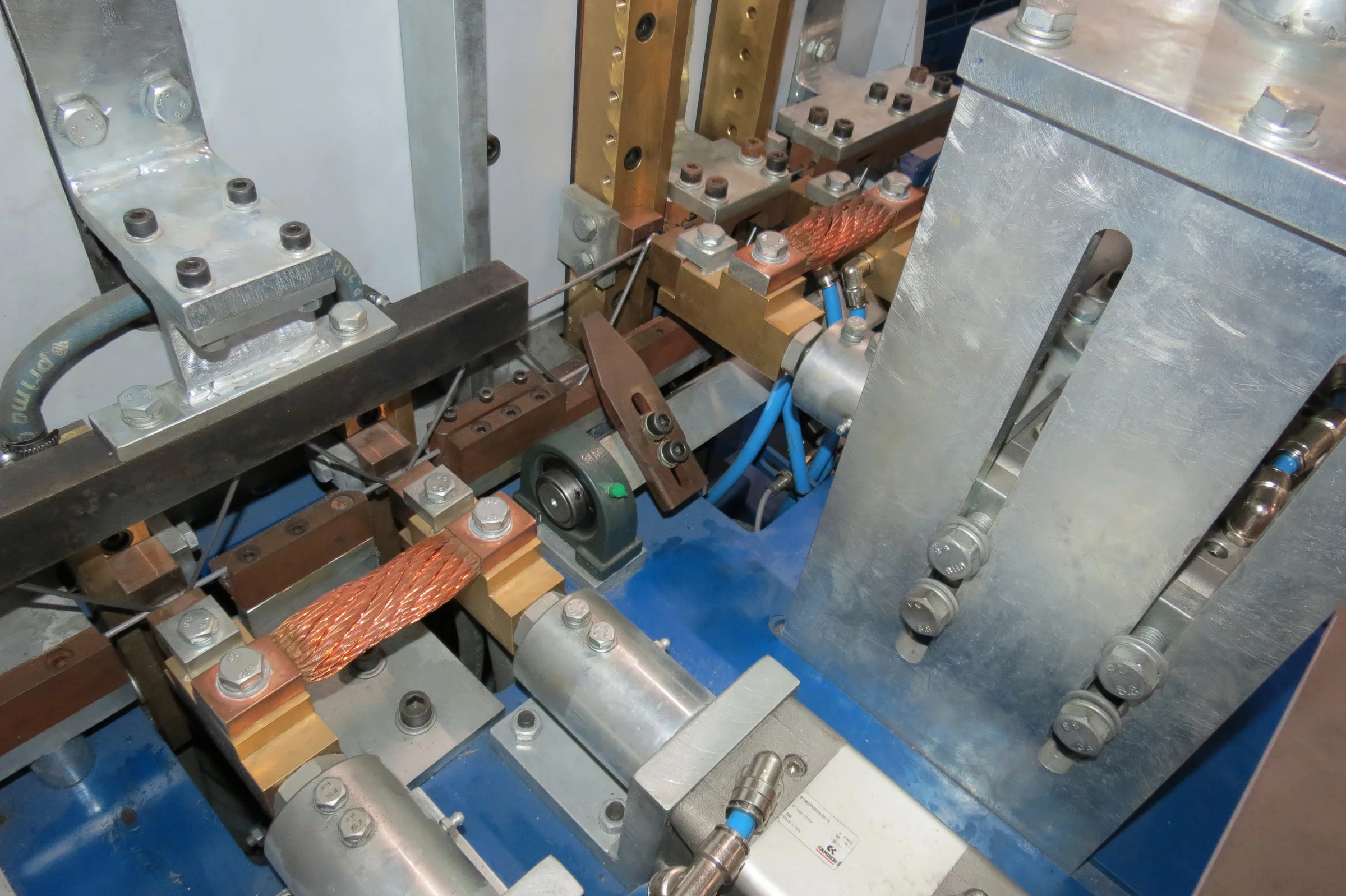

Our spacer welding and bending line is a fully automatic, PC-controlled system designed for high-speed and precise production of reinforcement ladder elements. Powered by 4 × 45 kVA transformers, 20 kW electric motors, and a 3 × 400 VAC, 50 Hz supply, the machine processes line wire diameters of 3.5–5 mm and diagonal wires of 3.5–4 mm. It supports a 150 mm pitch, adjustable heights from 70 to 250 mm, spacer lengths of 2400 mm before bending and 2050 mm after bending, and features simultaneous transformer switching for optimized welding performance. With a welding speed of 30 m/min, a weight of 10.5 t, and dimensions of 30 × 5 × 1.5/3 m, it delivers efficient and reliable large-scale production.
