Pre-Cut Welding Lines

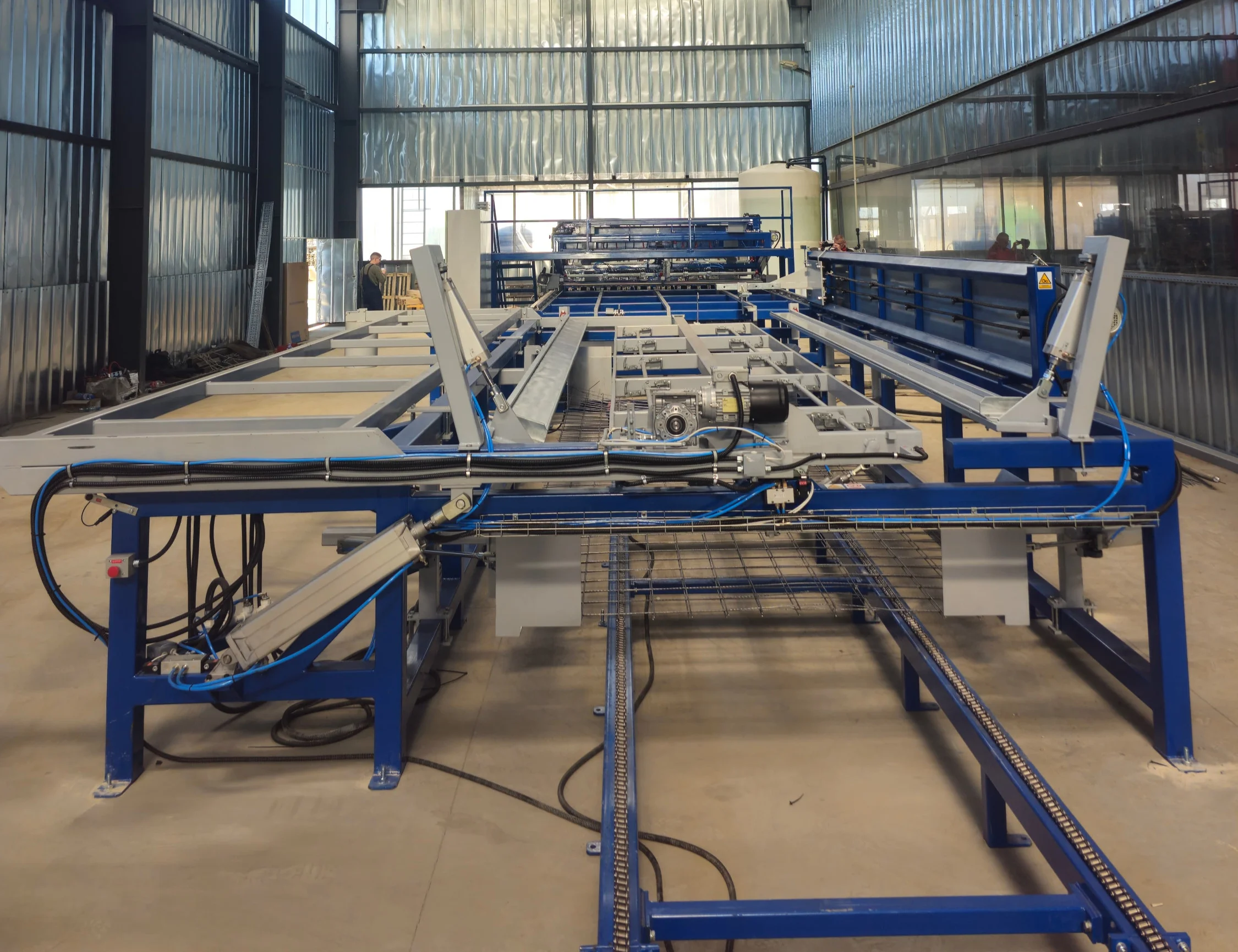

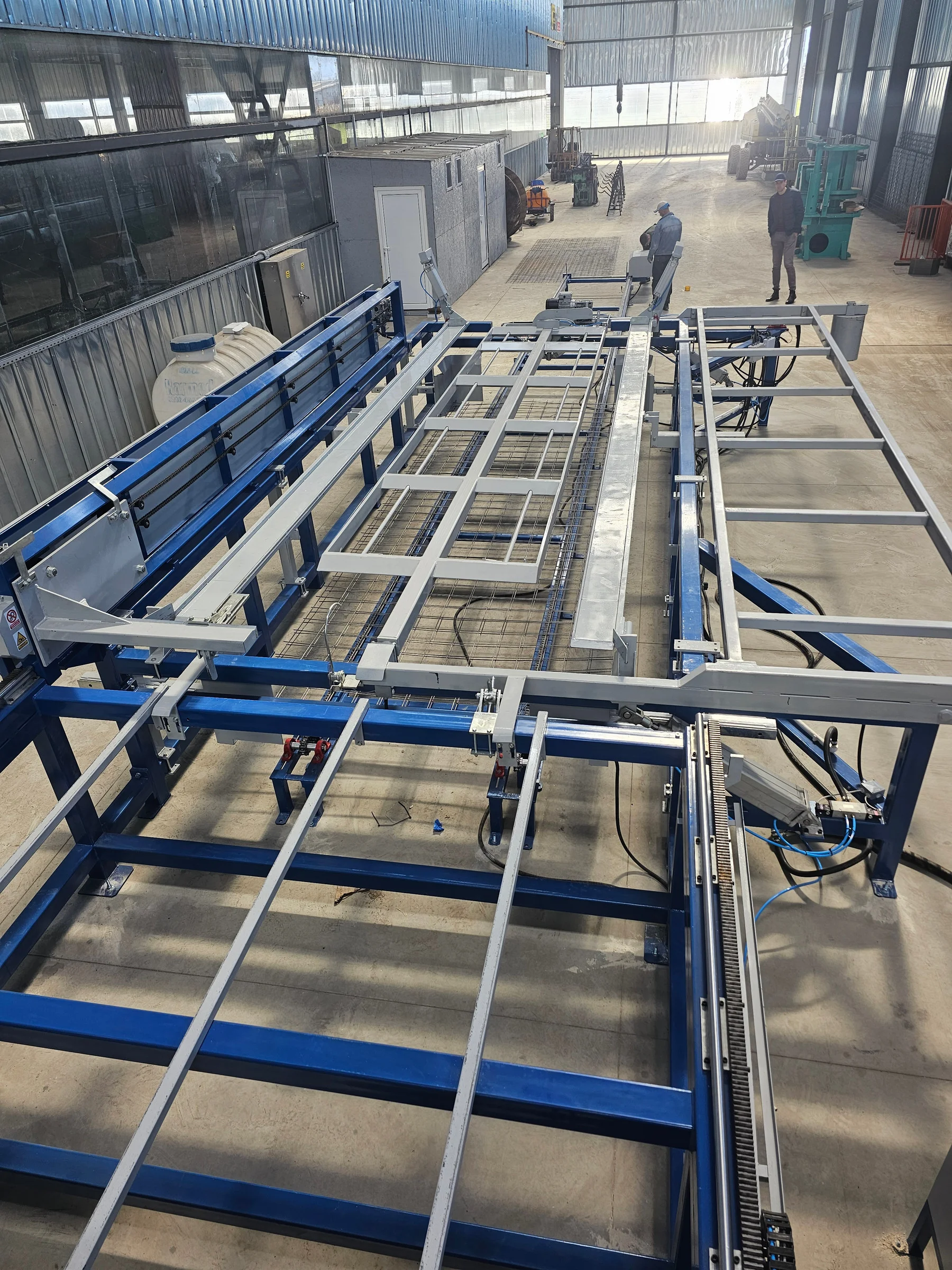

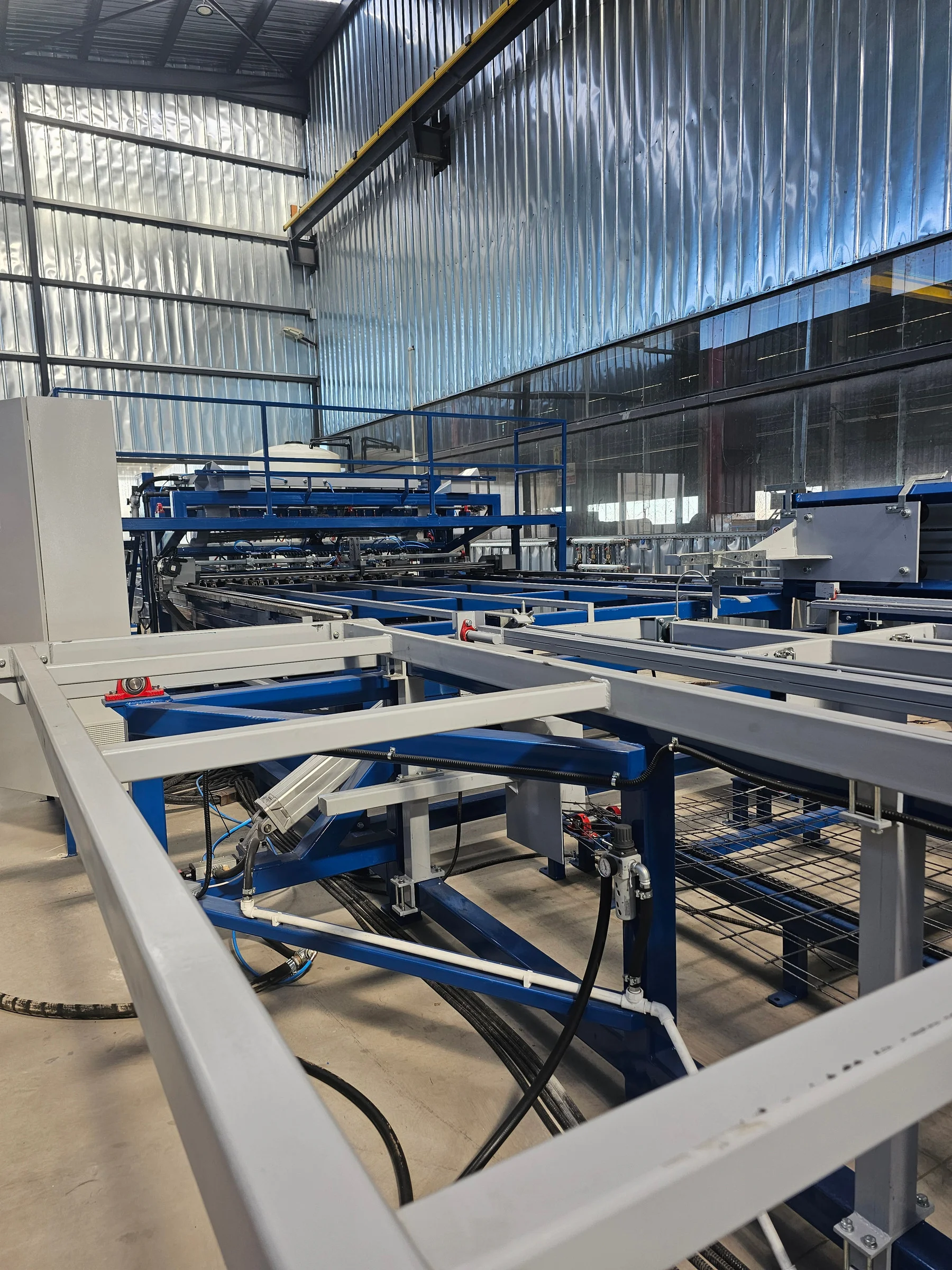

Pre-cut mesh welding line integrated with mesh panel turner for smooth handling and efficient double-sided processing.

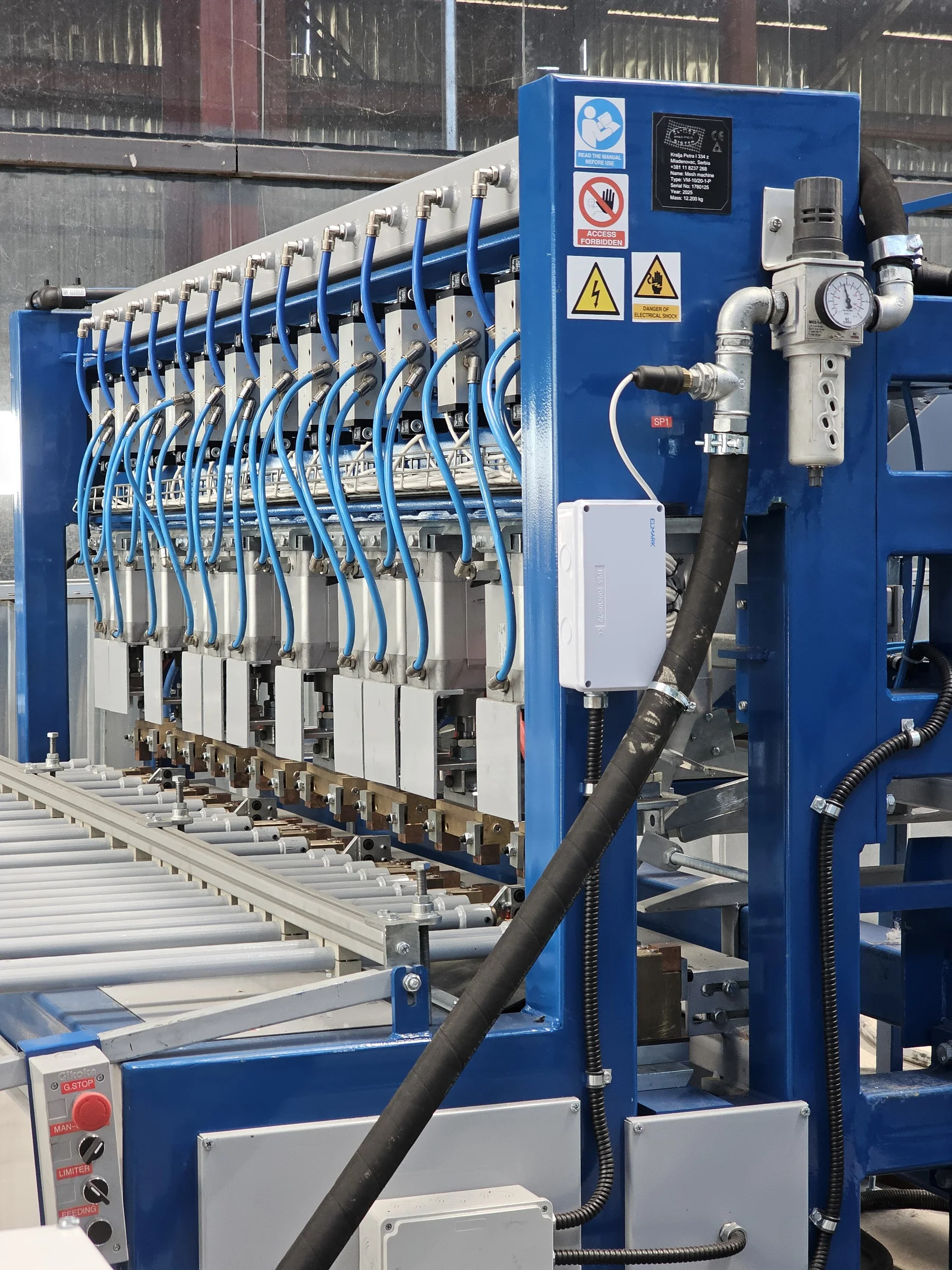

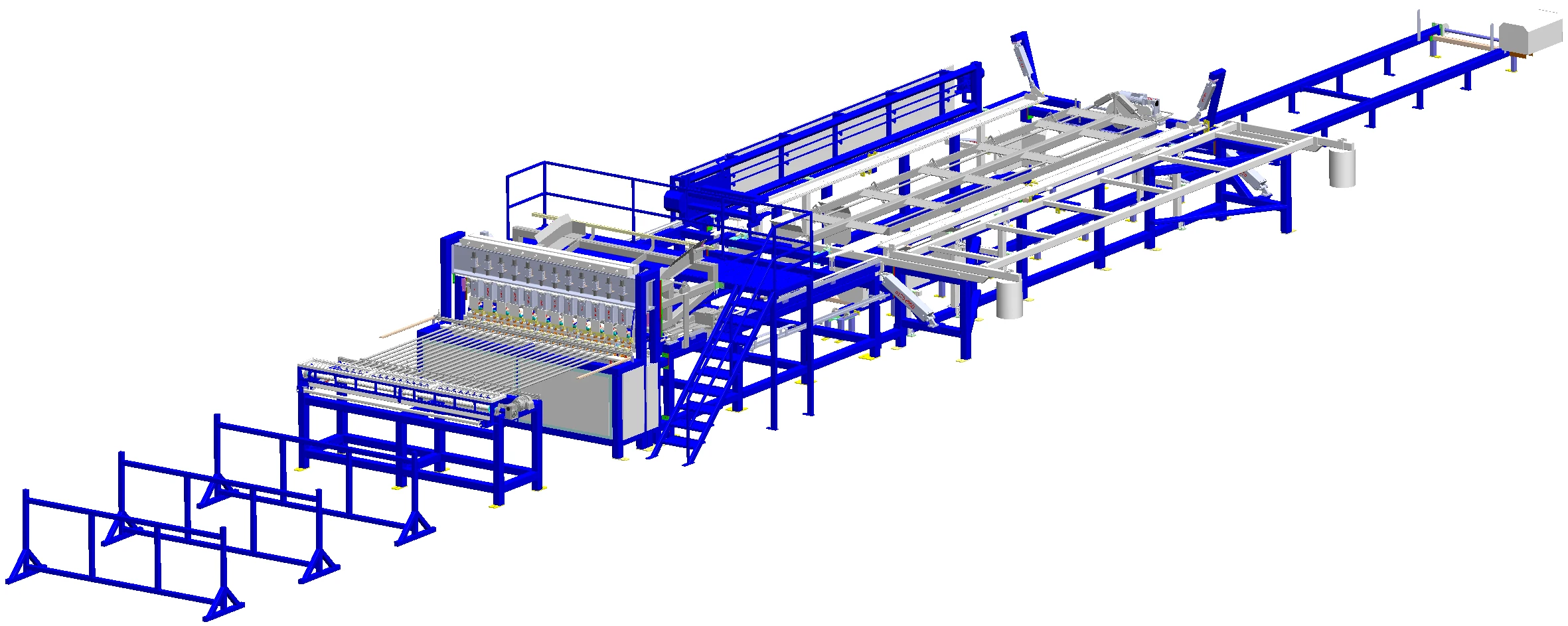

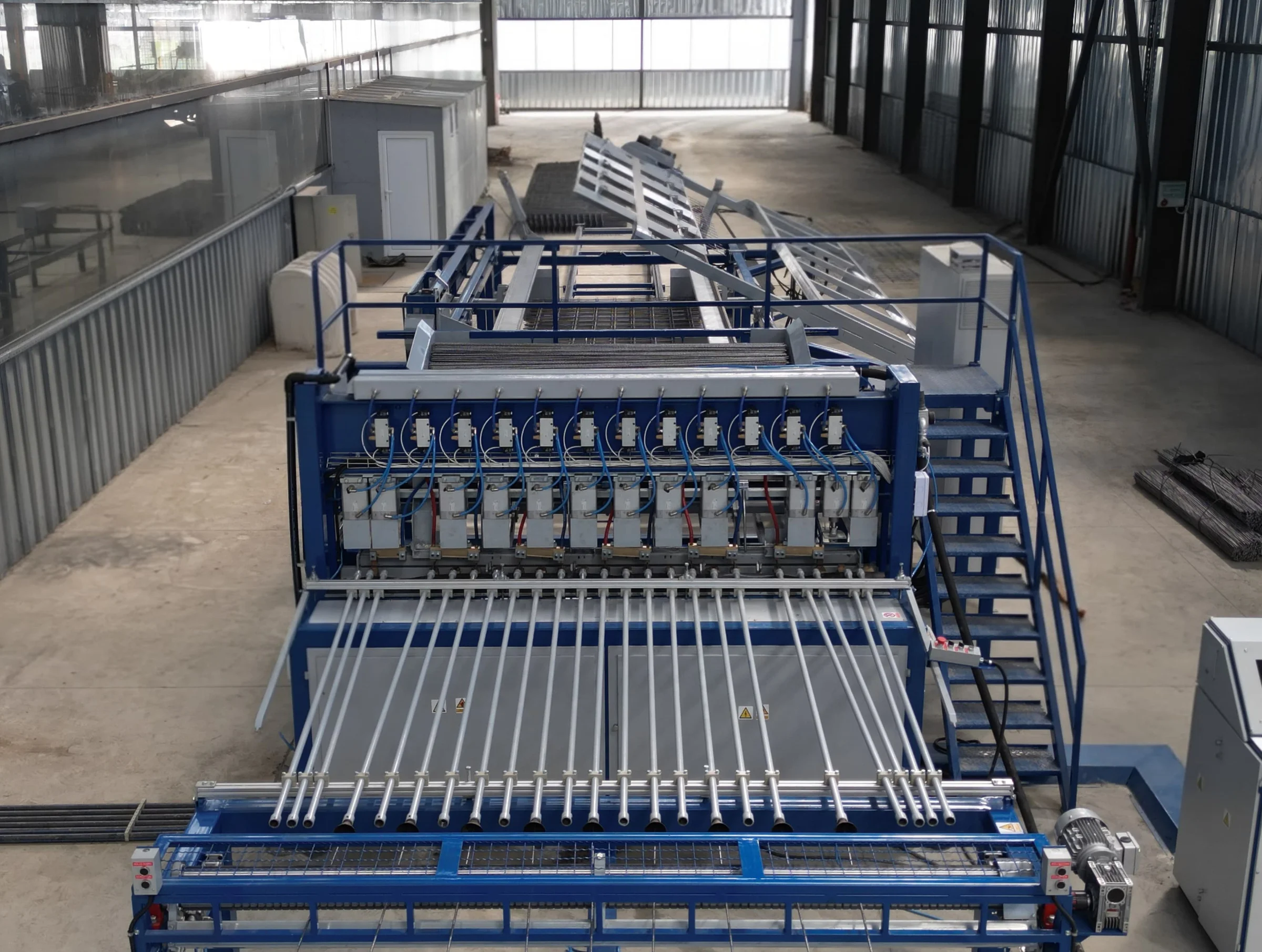

The VM-10/25-1-P-2.5M is a high-performance pre-cut mesh welding line designed for precise and efficient production of large-format welded mesh panels. With PC-controlled operation and pre-cut bar feeding for both line and cross wires, it ensures excellent flexibility, consistent panel geometry, and reliable output for demanding reinforcement applications.
Our key features are carefully engineered to deliver exceptional performance, long-term reliability, and maximum efficiency. Every aspect of the machine is designed with precision, ensuring consistent results even in demanding production environments.

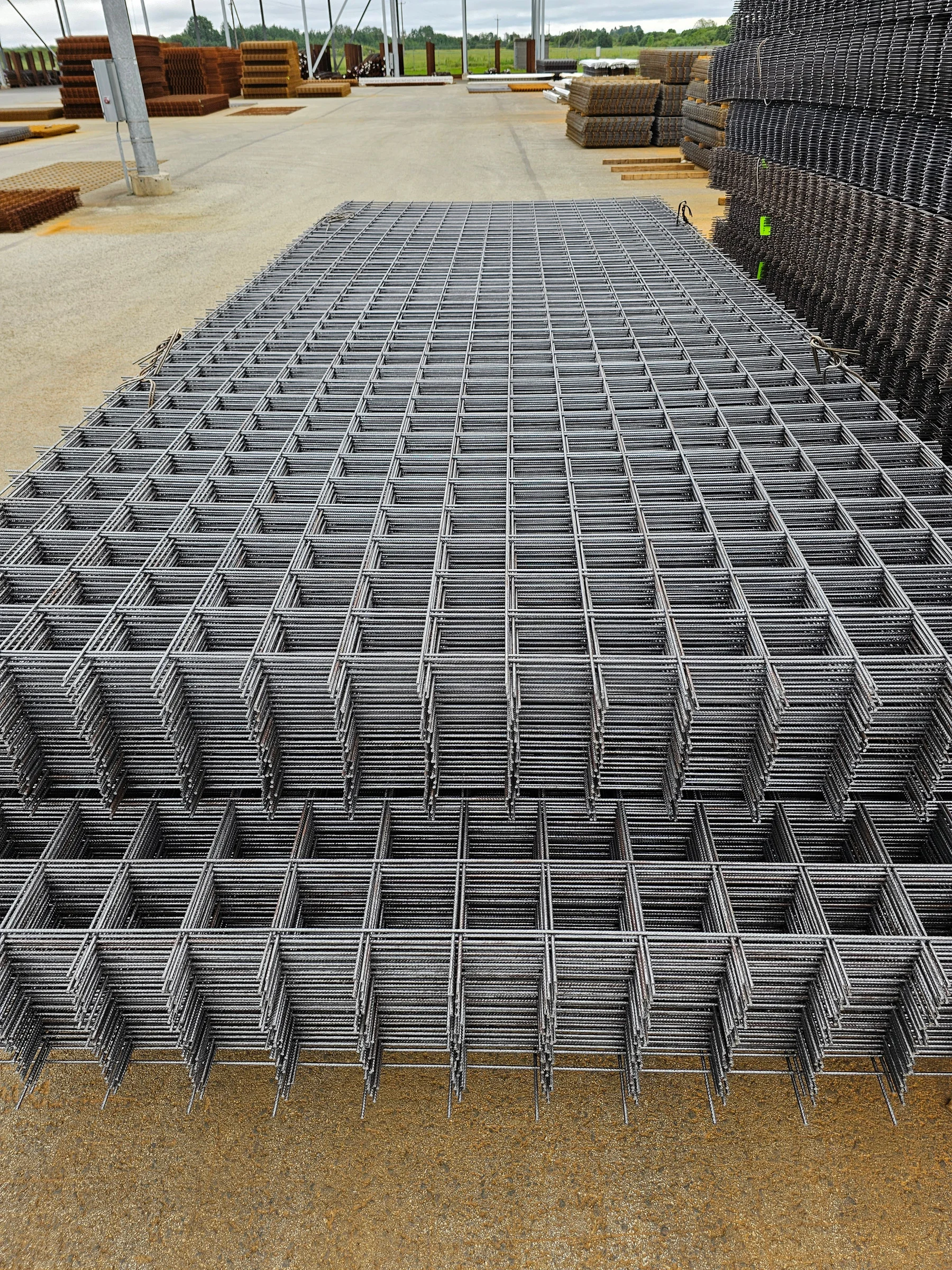

With a welding speed of 100 cross wires per minute and mesh dimensions up to 6000 × 2500 mm, the machine is ideal for efficient production of large reinforcement panels.
Both line and cross wires are inserted as pre-cut bars, ensuring accurate wire positioning, consistent panel geometry, and excellent flexibility for custom mesh specifications.
CUSTOMISABLE
The VM-10/25-1-P is powered by 13 × 100 kVA, with 15 kW drawing motors and a 3 × 400 VAC, 50 Hz electrical supply. Controlled by PC, it produces mesh panels up to 6000 × 2500 mm, processing wire diameters from 4 to 10 mm. The machine supports line wire spacing from 100 to 150 mm and cross wire spacing from 50 to 250 mm, while reaching a welding speed of 100 cross wires per minute. With overall dimensions of 29,000 × 4,000 × 2,600 mm, it is efficiently operated by two workers.
