Drawing Lines
For wire drawing - reducing diameter and improving mechanical characteristics of wire.

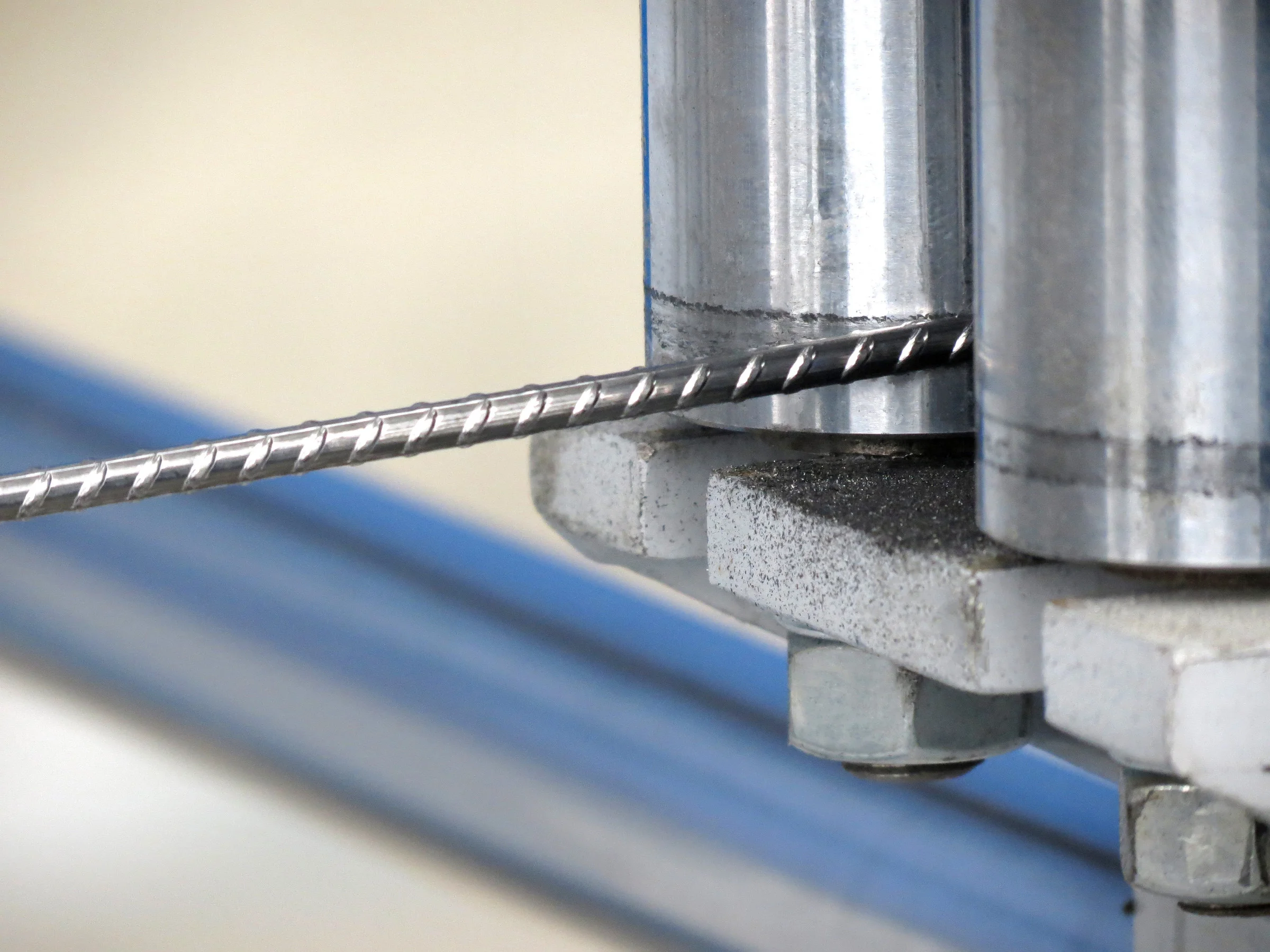

The K-60/3 drawing machine is a high-performance vertical-axis system designed for advanced wire drawing, rib formation, and mechanical enhancement of reinforcement wire. Its three-pass configuration ensures precise diameter reduction, improved surface profiling, and excellent wire consistency for demanding production environments.
Our key features are carefully engineered to deliver exceptional performance, long-term reliability, and maximum efficiency. Every aspect of the machine is designed with precision, ensuring consistent results even in demanding production environments.

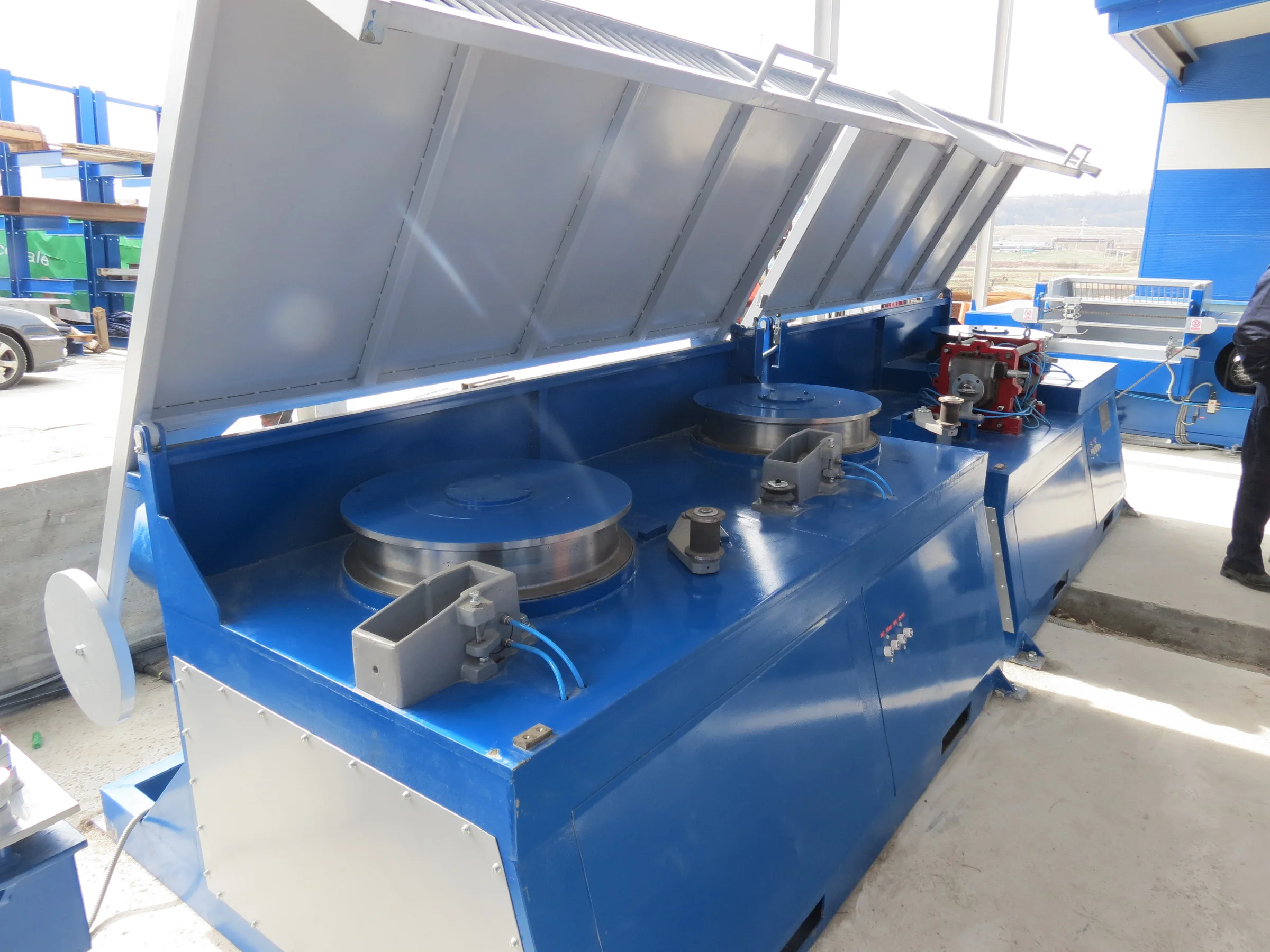

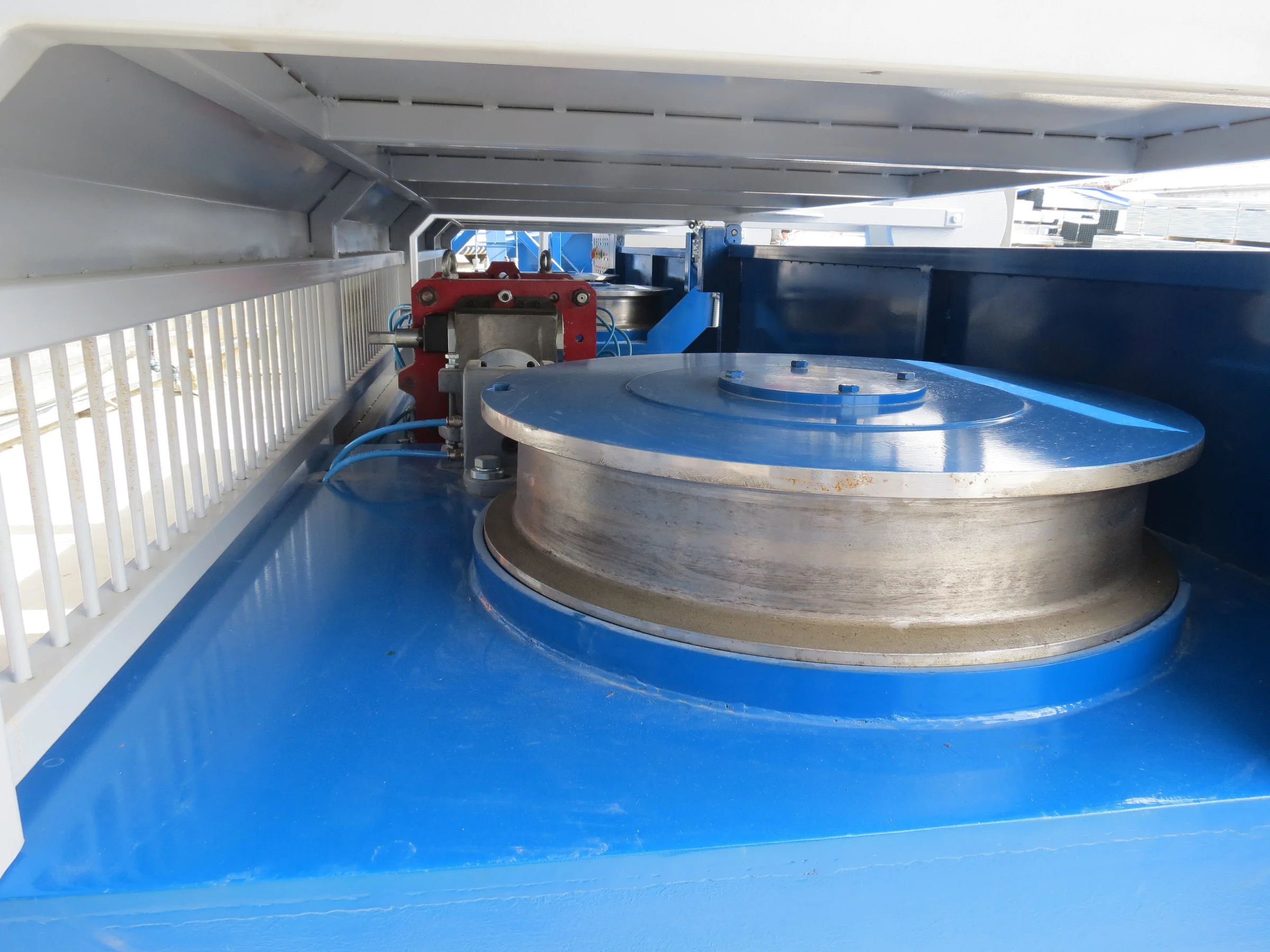

The vertical three-pass design enables progressive wire reduction with superior control, improved rib formation, and enhanced mechanical wire properties.
With installed power from 120 to 240 kW and speeds up to 10 m/s, the machine ensures fast, stable, and efficient wire processing for high-output production lines.
CUSTOMISABLE
Our K-60/3 wire drawing machine features a vertical-axis, three-pass configuration designed for precise wire diameter reduction, rib formation, and mechanical property enhancement. Powered by 120 to 240 kW and connected to a 3 × 400 VAC, 50 Hz supply, it processes input wire diameters up to 10 mm at drawing speeds of up to 10 m/s. With machine dimensions of 16,000 × 3,000 × 1,500 mm and operation by a single worker, it delivers efficient, high-speed wire processing with excellent dimensional accuracy and consistent wire quality.
