Straightening Machines
For straightening and cutting wire diameters ranging from 4 to 10 mm.

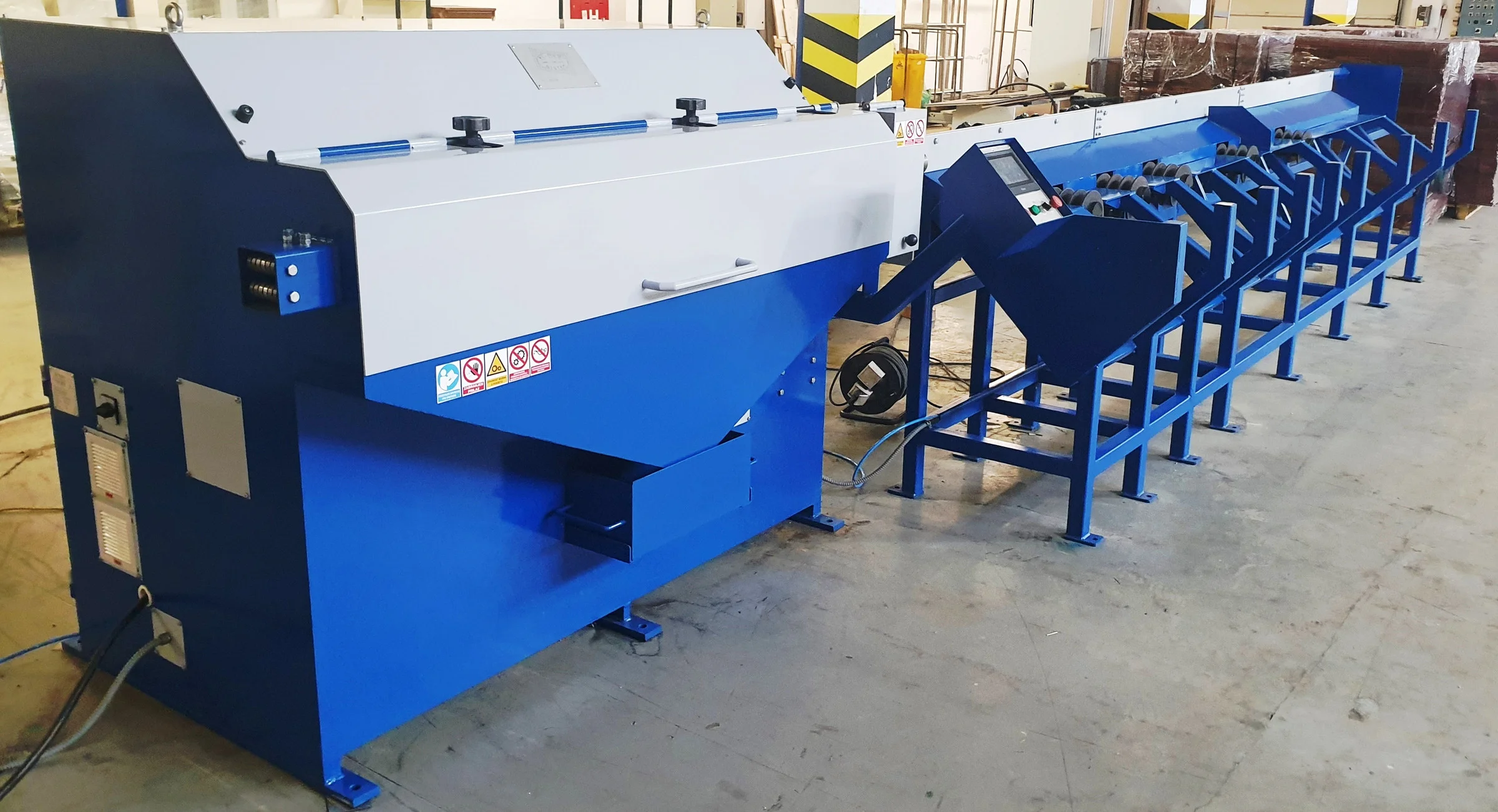

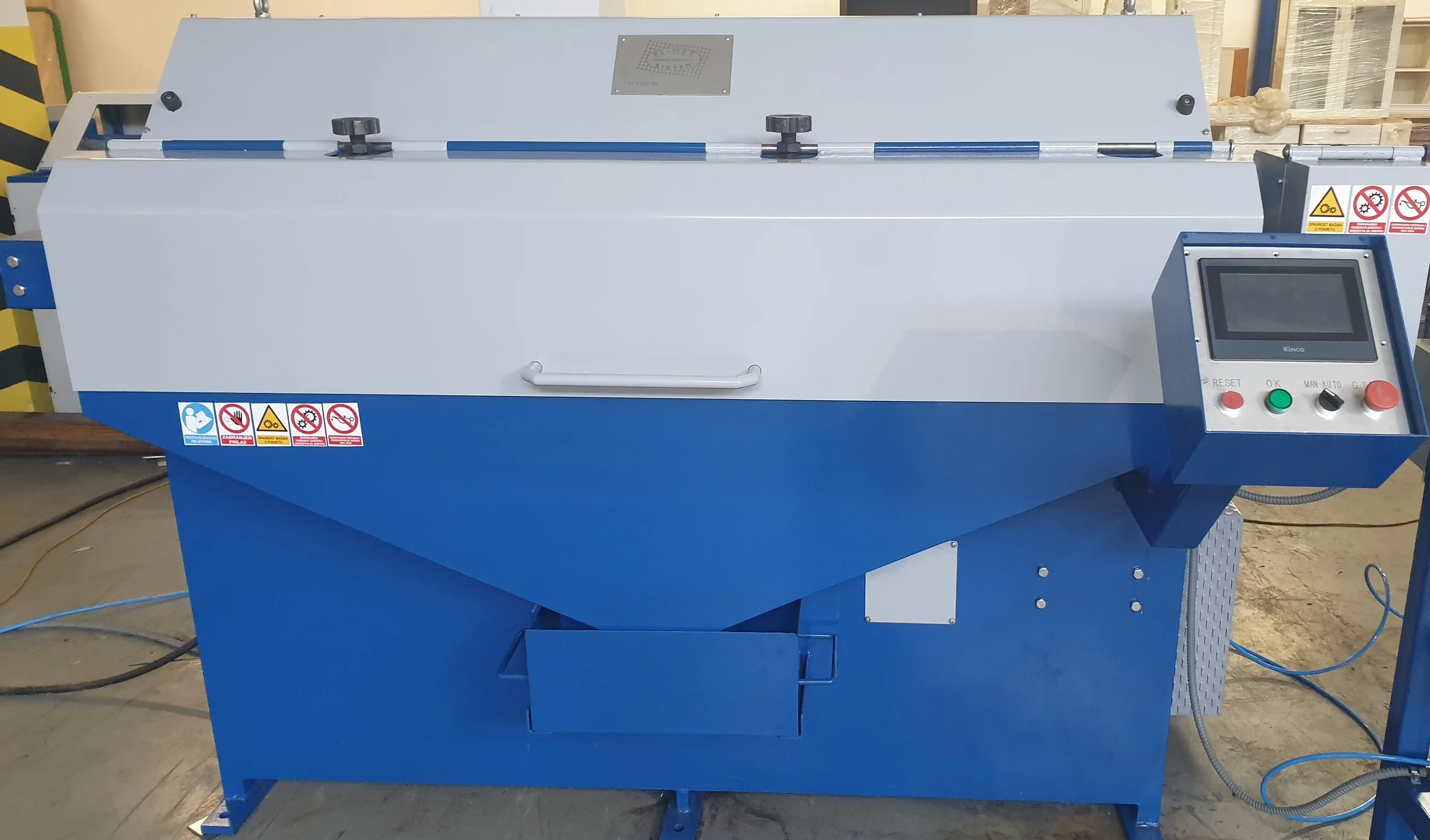

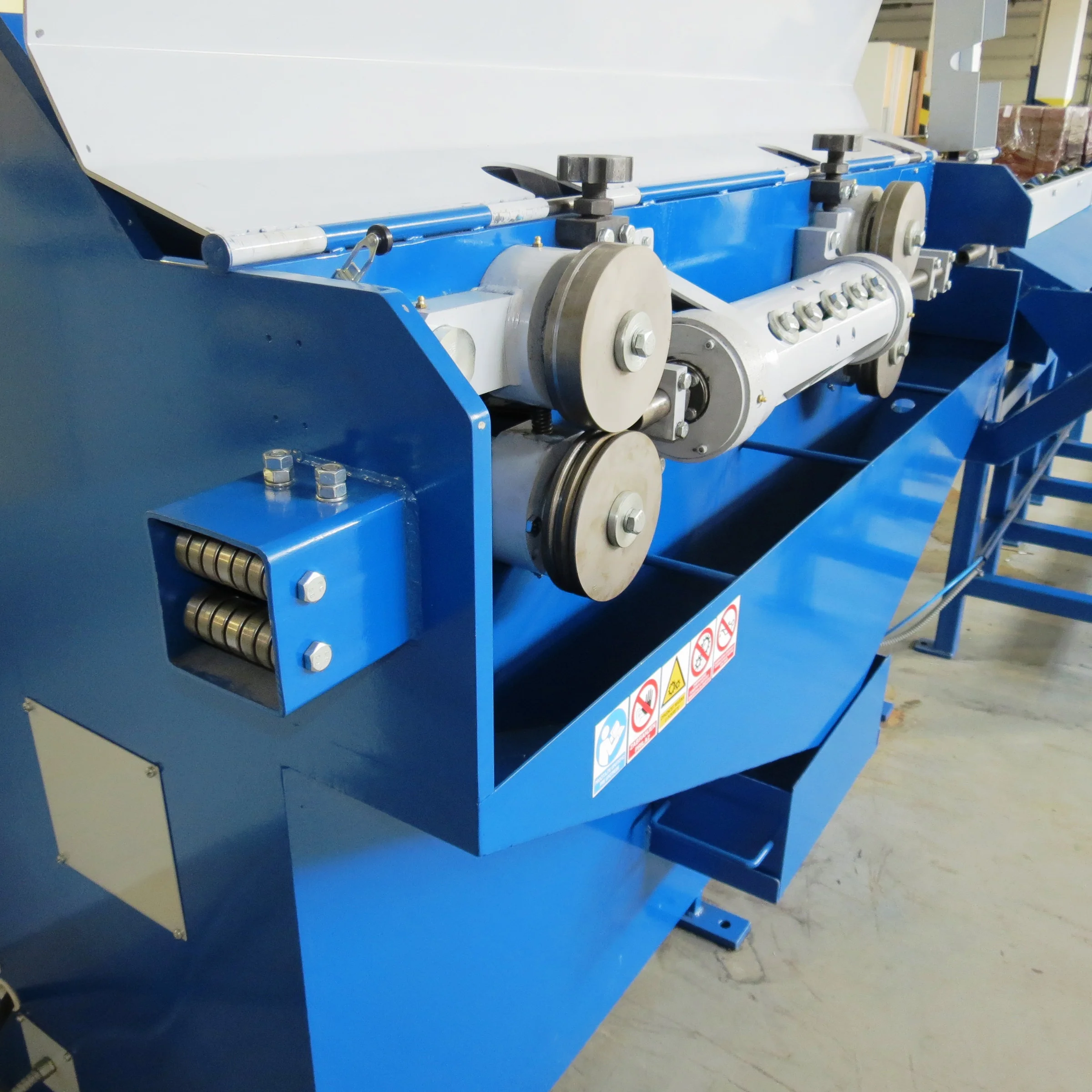

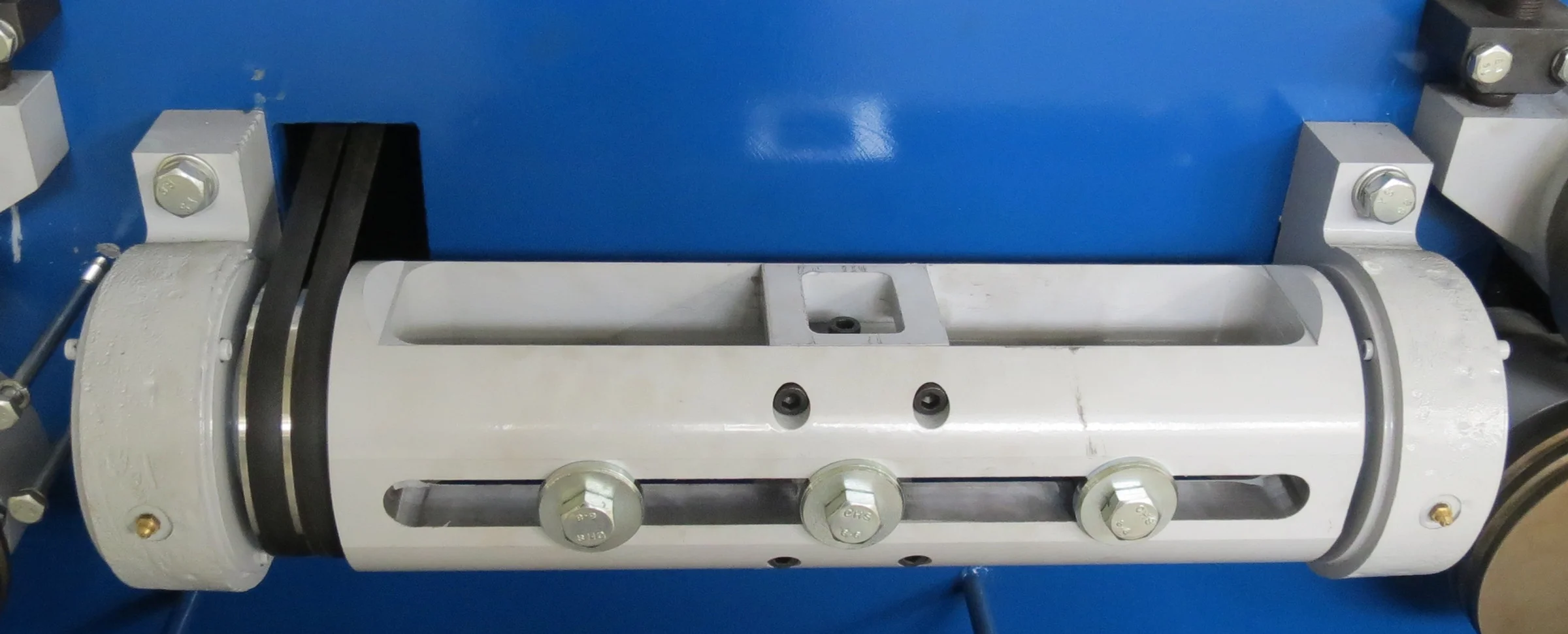

The IS-10 straightening and cutting machine is a high-speed, PLC-controlled system designed for precise processing of wire with diameters from 4 to 10 mm using a standard rotary head. With higher installed power and increased straightening speed, it delivers efficient and reliable wire preparation for medium to heavy reinforcement applications.
Our key features are carefully engineered to deliver exceptional performance, long-term reliability, and maximum efficiency. Every aspect of the machine is designed with precision, ensuring consistent results even in demanding production environments.

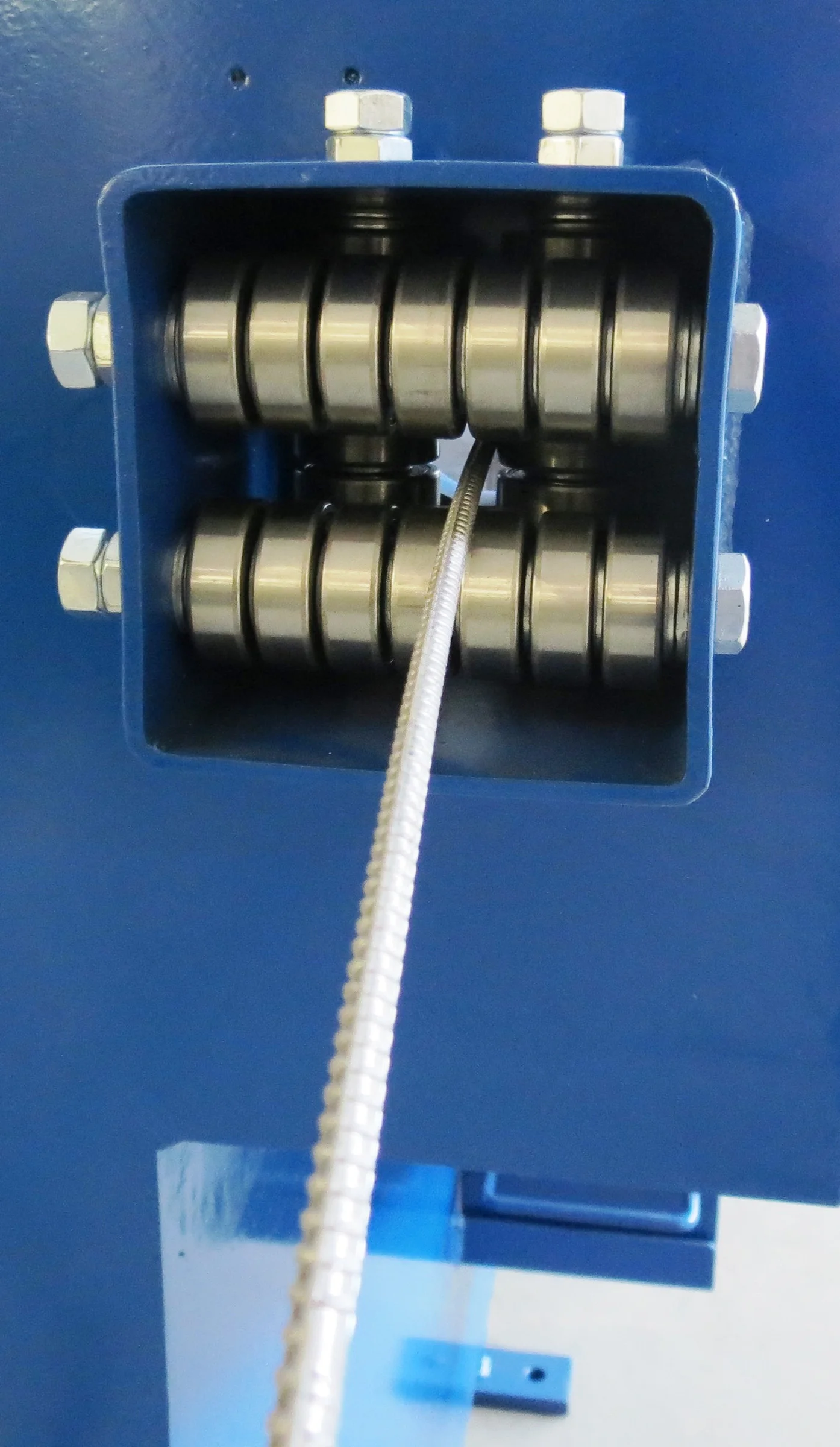

Operating at 30 to 100 m/min, the machine delivers fast and accurate wire straightening while maintaining excellent dimensional consistency.

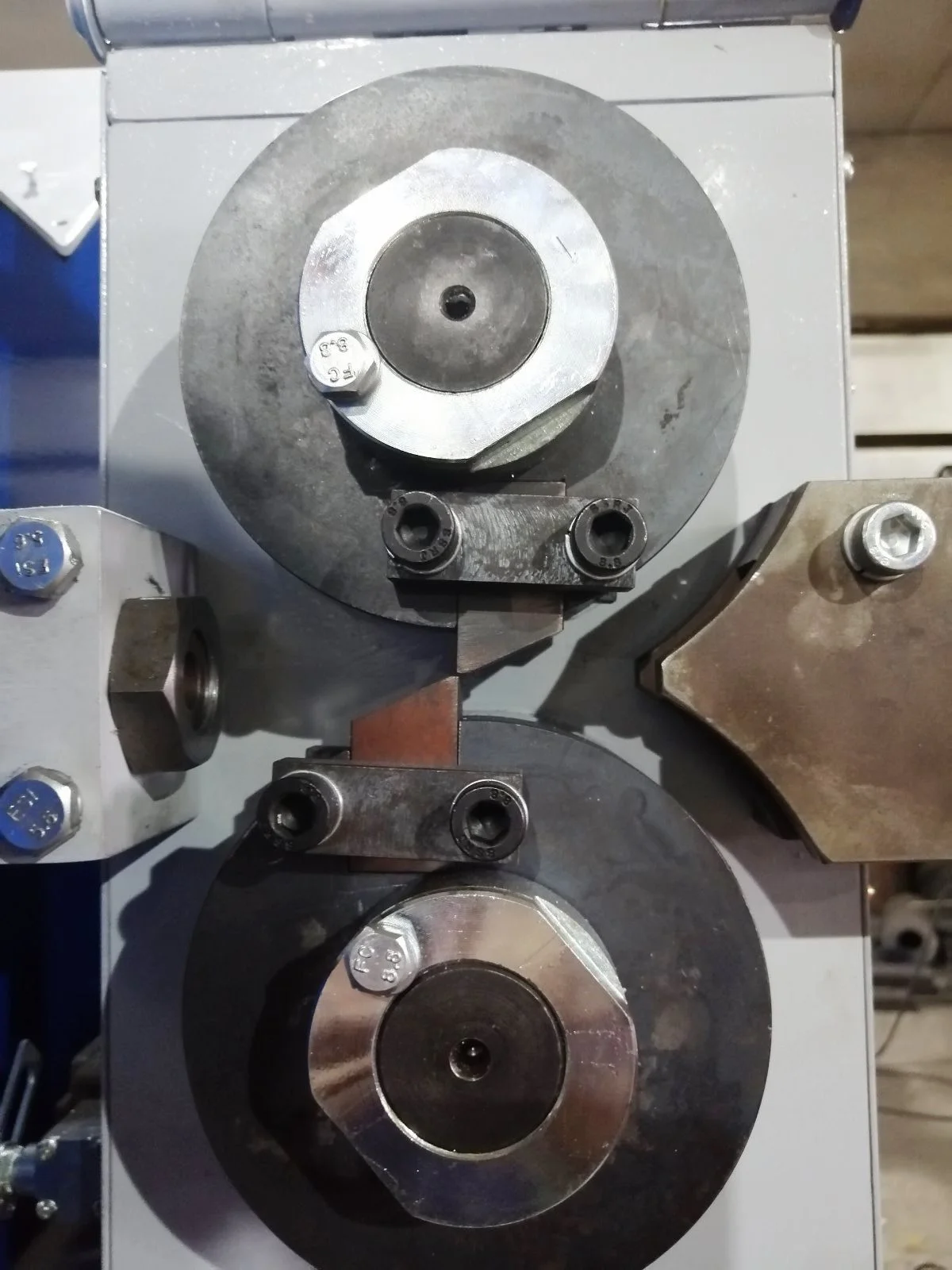

PLC control and servo-driven flying shears enable precise wire length programming of up to 12m, ensuring clean cuts, repeatable accuracy, and smooth high-speed operation.
CUSTOMISABLE
Our IS-10 straightening and cutting machine is a PLC-controlled wire processing system powered by 22 kW with a 3 × 400 VAC, 50 Hz electrical supply. Designed for wire diameters from 4 to 10 mm, it features a standard rotary head for accurate straightening at speeds of 30 to 100 m/min. With servo-driven flying shears for programmable cutting lengths up to 12 m, machine dimensions of 18,000 × 1,000 × 1,200 mm, and single-operator design, it provides efficient, high-speed wire processing.
