Semi-Automatic Welding Lines
Line wire and cross wire distances can be adjusted based on your needs. Machine is using a turner for mesh packaging.

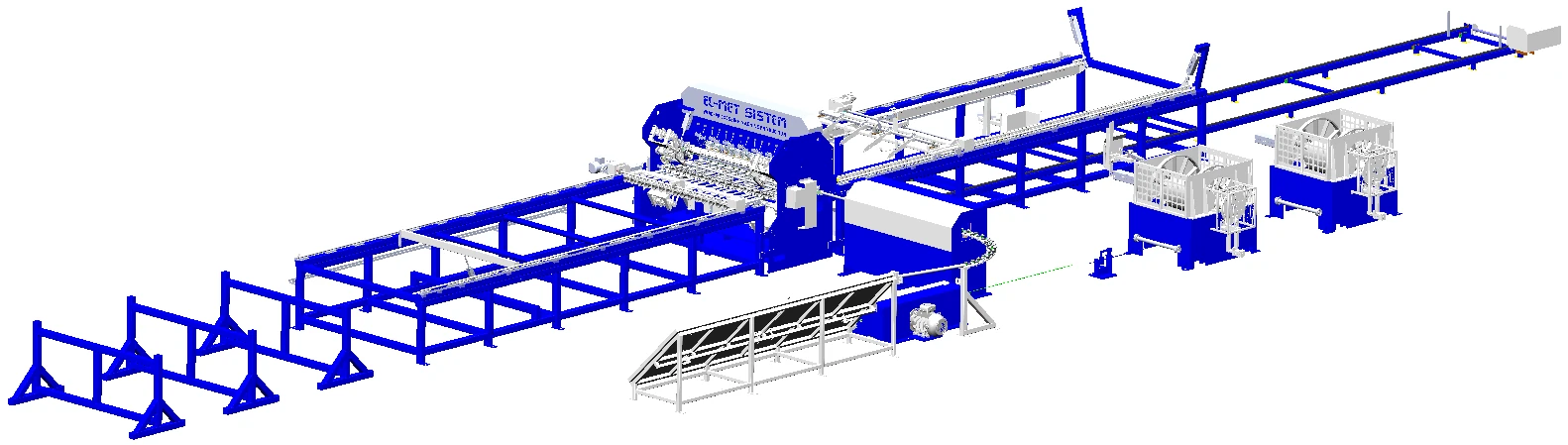

Wire mesh welding line VM-10-25-1-AP-P is a semi-automatic machine made for production of welded wire mesh. Machine uses mesh panel turner. Welding speed can go up to 80 cross wires per minute.
Our key features are carefully engineered to deliver exceptional performance, long-term reliability, and maximum efficiency. Every aspect of the machine is designed with precision, ensuring consistent results even in demanding production environments.
Cross wire is automatically fed from coils, ensuring continuous operation, reduced labor requirements, and maximum production efficiency.
The machine allows easy insertion of pre-cut line wires, enabling fast setup changes and efficient production of different mesh formats and specifications.
CUSTOMISABLE
Our semi-automatic mesh welding machine is a PC-controlled, high-efficiency system powered by 11 × 75 kVA, with 22 kW drawing motors and a 3 × 400 VAC, 50 Hz electrical supply. It is designed for wire mesh dimensions up to 6050 × 2150 mm, processing wire diameters from 4 to 10 mm with line wire spacing of 100 and 150 mm and adjustable cross wire spacing from 50 to 250 mm. With a welding speed of 60–80 cross wires per minute, machine dimensions of 30,000 × 7,000 × 2,000 mm, and operation by two workers, it offers reliable and flexible mesh production.
