Complementary Machines
Machine is made for bending cold draw, raw and ribbed wire.

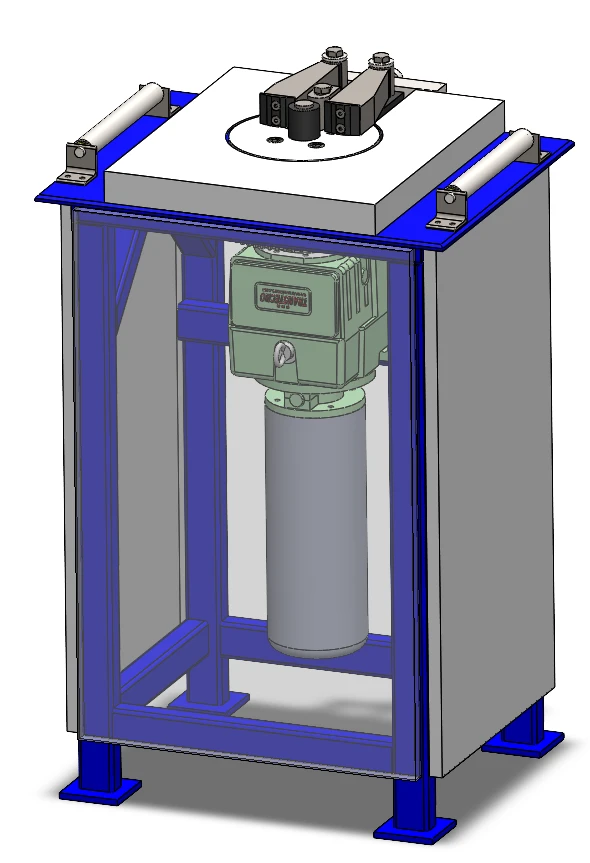

The SV line for wire bending is a compact, PLC-controlled system designed for precise bending of cold-drawn, raw, or ribbed wire of various diameters and angles. It ensures high accuracy and repeatable results, making it ideal for reinforcement, fabrication, and specialized wire applications.
Our key features are carefully engineered to deliver exceptional performance, long-term reliability, and maximum efficiency. Every aspect of the machine is designed with precision, ensuring consistent results even in demanding production environments.
The PLC-controlled system provides bending accuracy of +/-1 deg, allowing consistent results across different wire types and angles.

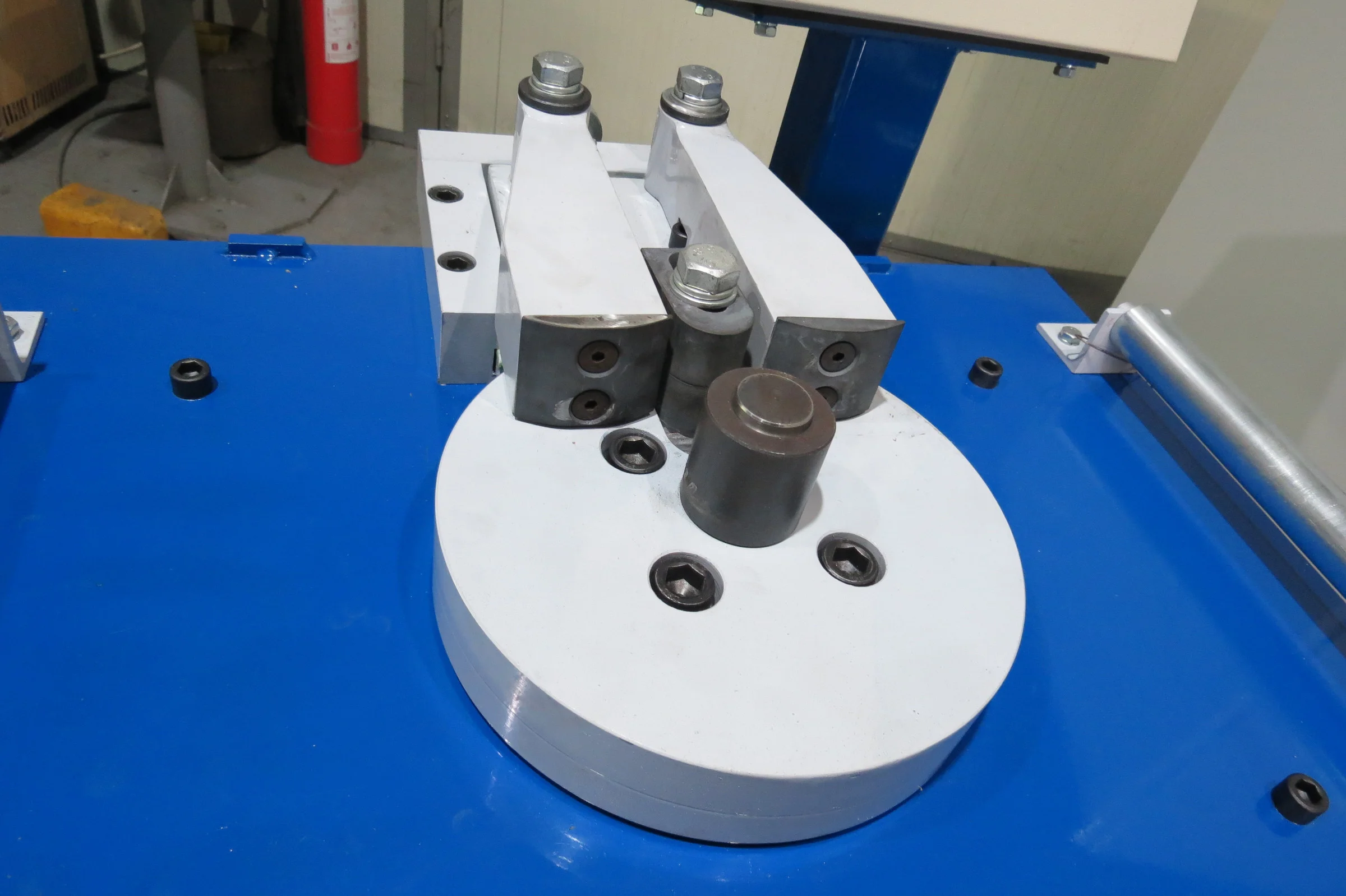

Capable of processing wire diameters up to 16 mm with tensile strengths up to 650 N/mm2, the machine can bend cold-drawn, raw, and ribbed wires at programmable angles.
CUSTOMISABLE

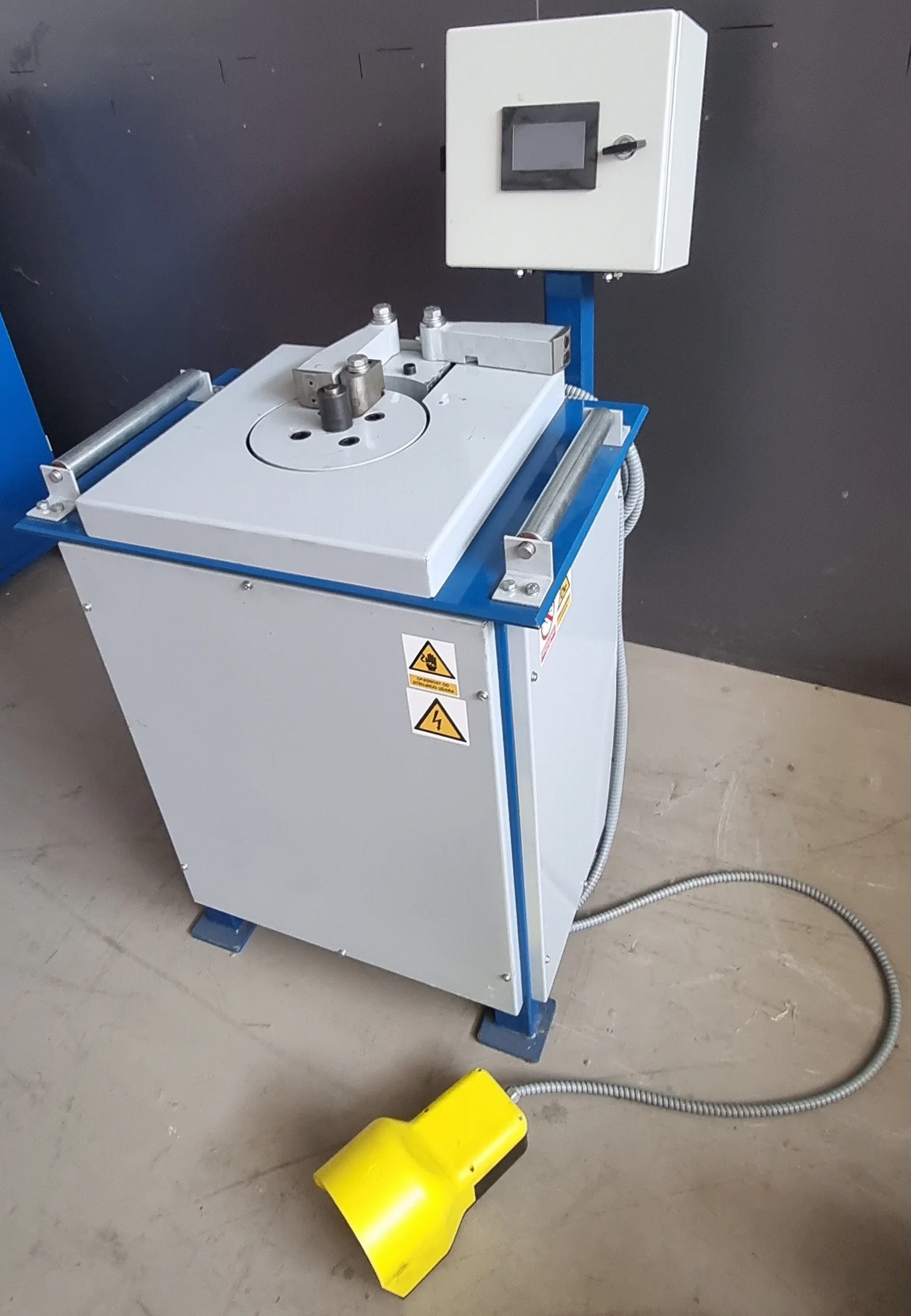

The SV-16 wire bending machine is a PLC-controlled system powered by 1.5 kW with a 3 × 400 VAC, 50 Hz electrical supply. Designed for maximum wire diameters of 16 mm and tensile strengths up to 650 N/mm², it delivers bending precision of +/-1 deg. Compact dimensions of 800 × 600 × 1,300 mm and a weight of 350 kg make it easy to integrate into production lines.
The SV-22 wire bending machine is powered by 2.2 kW with a 3 × 400 VAC, 50 Hz electrical supply. Capable of processing wire diameters up to 22 mm and tensile strengths of 650 N/mm², it delivers bending precision of +/-1 deg. With compact dimensions of 800 × 600 × 1,300 mm and a weight of 350 kg, bending angles are fully programmable via the PLC.
